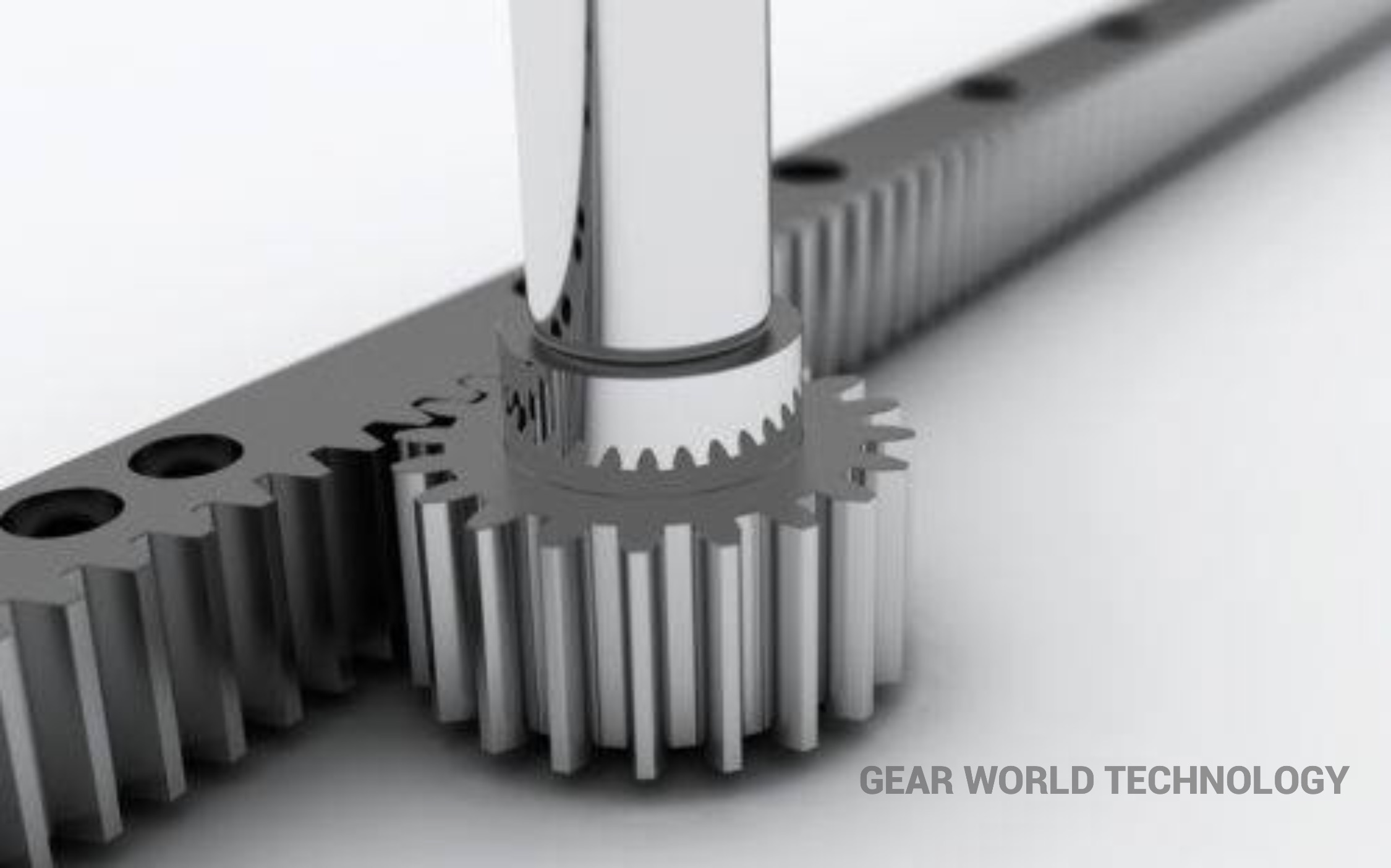

Round Rack & Pinion

A rack and pinion is a type of linear actuator that comprises a pair of gears which convert rotational motion into linear motion. A circular gear called "the pinion" engages teeth on a linear "gear" bar called "the rack"; rotational motion applied to the pinion causes the rack to move relative to the pinion, thereby translating the rotational motion of the pinion into linear motion.
For example, in a rack railway, the rotation of a pinion mounted on a locomotive or a railcar engages a rack between the rails and forces a train up a steep slope.
For every pair of conjugate involute profile, there is a basic rack. This basic rack is the profile of the conjugate gear of infinite pitch radius
A generating rack is a rack outline used to indicate tooth details and dimensions for the design of a generating tool, such as a hob or a gear shaper cutter.

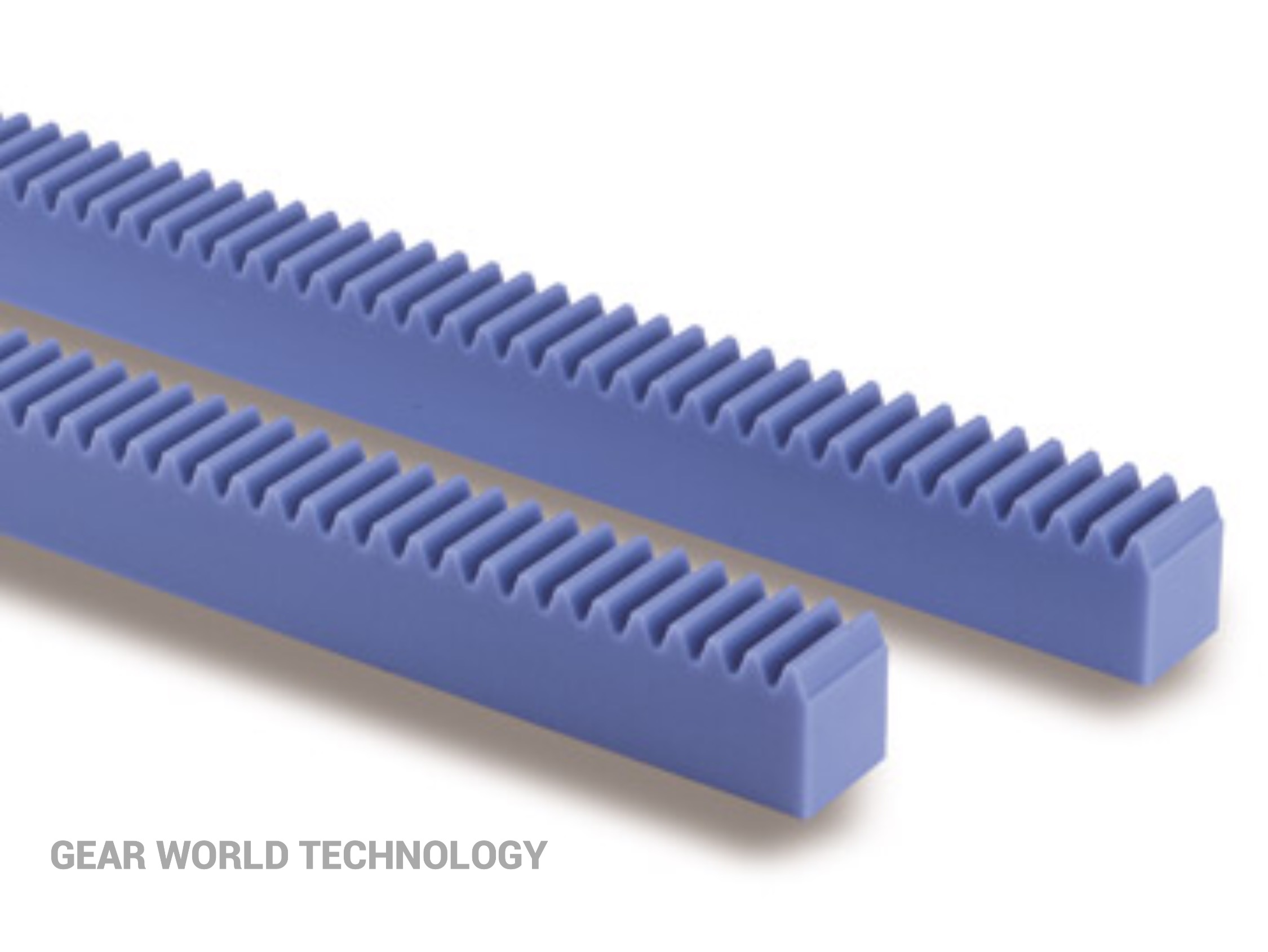

Nylon Rack

Spur gears are the most common type used. Tooth contact is primarily rolling, with sliding occurring during engagement and disengagement. Some noise is normal, but it may become objectionable at high speeds

We make available a superior quality Rack and Pinion Gear, which are known for their precise functionality. We are manufacturing, supplying, trading and exporting our products by using quality-tested raw material, these Racks are widely appreciated for their compact designs, corrosion & abrasion resistance, precise dimensions, high performance and durability. These are widely used by automobile industry.

Features:

    Sturdy design
    Corrosion resistance
    Dimensional accuracy

Square Rack & Pinion

A rack is a toothed bar or rod that can be thought of as a sector gear with an infinitely large radius of curvature. Torque can be converted to linear force by meshing a rack with a pinion: the pinion turns; the rack moves in a straight line. Such a mechanism is used in automobiles to convert the rotation of the steering wheel into the left-to-right motion of the tie rod(s). Racks also feature in the theory of gear geometry, where, for instance, the tooth shape of an interchangeable set of gears may be specified for the rack (infinite radius), and the tooth shapes for gears of particular actual radii then derived from that. The rack and pinion gear type is employed in a rack railway.

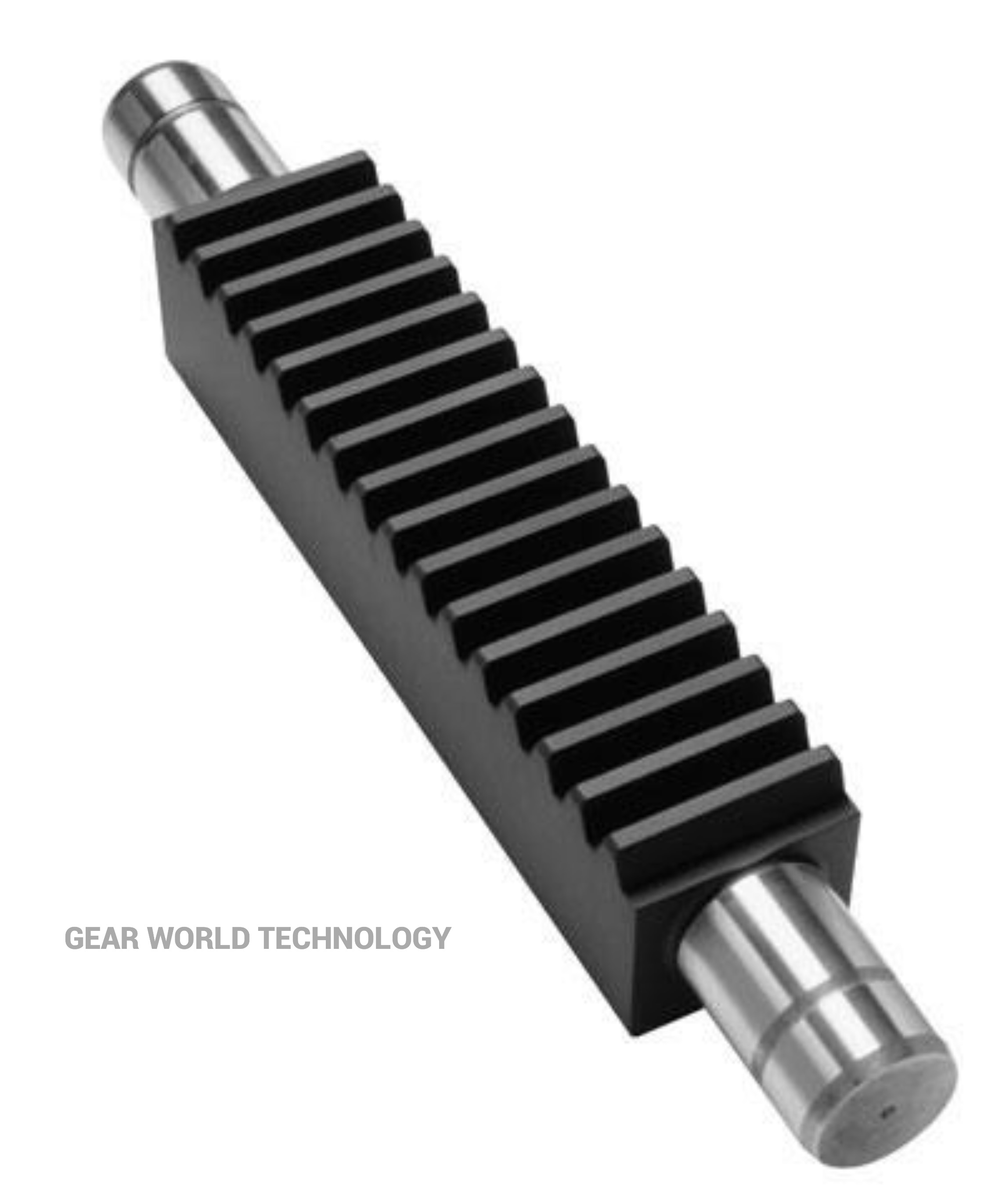

Special Type Of Rack

Nylon gear rack and pinion that made the with 100% Virgin Raw Material by Guangzhou Engineering Plastics Industries (Group) Company, has the best performance, such as: very tough, even at low temperatures, and high hardness in the surface, toughness, mechanical lower shock, and abrasion resistance. Combined with these characteristics and good insulation, and chemical properties, it has become common-level materials. Its widely used in a variety of mechanical structures and spare parts. Nylon PA6 products that made by Guangzhou Engineering Plastics Industries (Group) Company, has the higher hardness, rigidity, a good resistance to wear and heat deflection temperature.

Durable Nylon Gear rack to suit Module 4 (M4) drive pinions.  Supplied in 1 meter lengths, this gate rack is made from durable nylon with high quality mounting tabs and is suitable for both automatic sliding gates and manual sliding gates. For a higher duty gate gear rack with the same pitch, see our steel gear rack.
